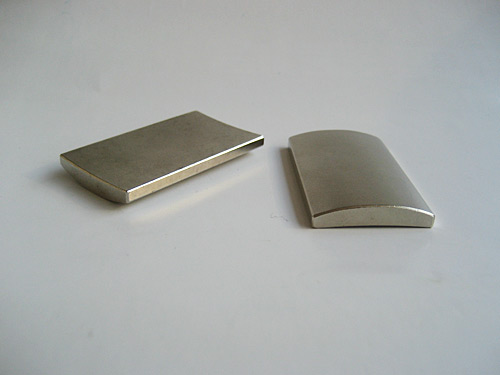

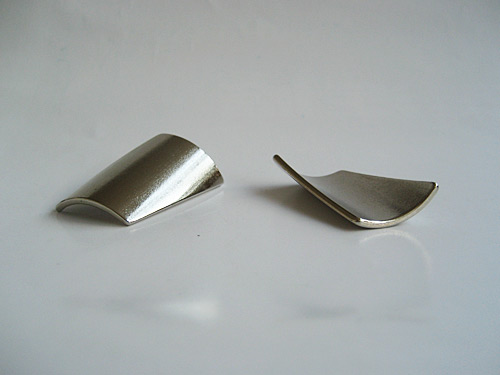

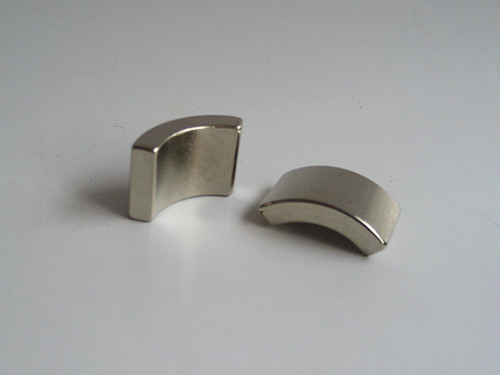

NdFeB Arc Magnets

Description:
  • Material : NdFeB or Neodymium Iron Boron
  • Shape of magnet: Arc segment
  • Grade of magnet: N35UH
  • Dimension: 33 x 28mm
  • Thickness: 4.5mmmm
  • Tolerance: +/-0.1mm
  • Plating : Nickle coated
  • Operating Temp(Max).: 180℃ (356℉)
  • Maximum Br: 12200Guass
  • Magnetized Direction: Magnetized through thickness.
  • Application: Arc segment magnet for permanent DC Motor.
  • Other size and grade are available on request
N35UH Grade  R33x r28 x 21.5x 4.5mm  NdFeB Motor Magnets

Grade of Neodymium Magnet

N33   N35  N38  N40  N42  N45  N48  N50  N52       Working Temp. 80℃ (176℉)
33M   35M  38M  40M  42M  45M  48M  50M             Working Temp. 100℃ (212℉)
33H   35H  38H  40H  42H  45H  48H  50H               Working Temp. 120℃ (248℉)
33SH  35SH  38SH  40SH  42SH  45SH                   Working Temp. 150℃(302℉)
30U   33UH  35UH  38UH  40UH  42UH                     Working Temp. 180℃ (356℉)
30EH  33EH  35EH  38EH  40EH                               Working Temp. 200℃ (392℉)
28AH  30AH  33AH                                                 Working Temp. 230° C (446℉)

Dimension range of Disc Magnet
Length :  3.0mm ~ 50mm
Chord length:  5mm ~ 150mm
Thickness :  1.0mm ~ 50mm

Tolerance of Neodymium Magnet
Standard tolerance : +/-0.1mm  (±0.004” )
Also stricter tolerance are possible if specially requested.

Surface coating of Neodymium Magnet

Nickle, Zinc, Ni-Cu-Ni, Silver, Gold, Black or Grey epoxy resin, Passivation, Parylene, Ni+Sn
Also provide special suface protection to neodymium magnet, Iron cover, Plastic coated,
Rubber coated

Packaging and Delivery
Packaging: Neutral box packaging, inner box , foam inside and other protection, to ensure
safely of transportation.
Delivery time: 8 ~ 20days, depend on customer’s order quantity.


How to order
1.Type of magnet and Grade
2.Shape and dimenion of Magnet
If possible, it’s better to send us a drawing or sketches.
3.Tolerance of Magnet
4.Quantity
5.Direction of Magnetization
6.Surface coating (if any)
7.In case, you have no idea about the grade and surface coating, please tell us the following information:
7-1.What’s the product used for ?
7-2.Operating temperature and environment (dry. Humit, salt or others )


For more useful information,please feel free to contac us: sales@senmagnetics.com
