Dimension-Range



Dimension Range of Sintered NdFeB Magnet

Shape

Length (OD)  mm

Width (ID)  mm

Thickness (mm)

Min.

Max.

Min.

Max.

Min.

Max.

   Block

2

200

1.5

180

0.5

50

   Ring

3

220

2

80

1.0

50

 Disc/Bar

1.5

220





0.8

50



Length

Chord Length





Min.

Max

Min.

Max.





 Segment

3

50

5

150

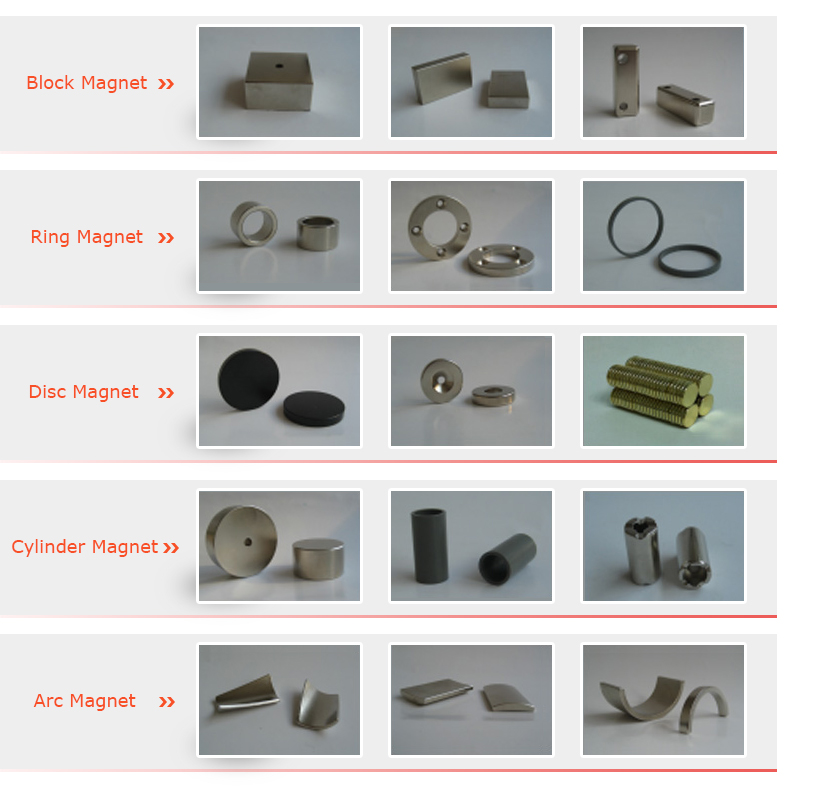

Neodymium Iron Boron(NdFeB Magnets) Can be supplied in different grade, and many varied

Dimensions. Basically, N35 grade, the most common grade for most applications.


Permanent Neodymium Magnets can be supplied in Ring, Disc, Block, Arc Segment and Unique shaped as your requested.
