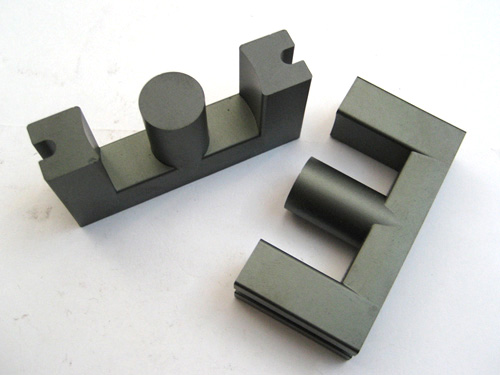

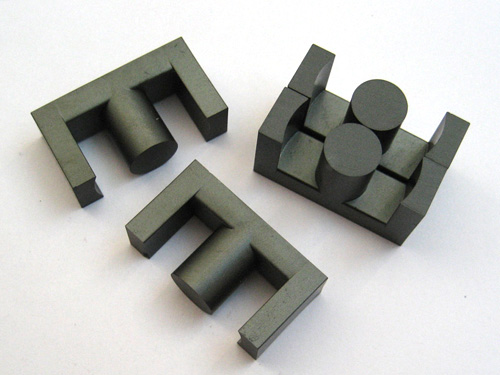

EER Cores

Description:


EER CORES (Dimensions)

TYPE Dimensions Unit/mm
Fig A 2B C D E 2F W(g/set)
EER09/05 2 9.35±0.15 4.90±0.10 4.90±0.10 7.50min 3.40±0.10 3.35±0.15 0.6
EER12/05 3 11.80±0.20 5.10±0.20 7.00±0.20 9.40±0.20 4.60±0.15 2.70±0.20 1.3
EER23/24 2 23.20±0.40 23.90±0.30 8.20±0.20 18.90min 6.90±0.15 17.60±0.40 11.0
EER24/29 1 24.40±0.50 28.90±0.30 8.50±0.30 18.00min 8.50±0.20 20.20±0.40 19.0
EER25/19 1 25.50±0.50 18.60±0.40 7.50±0.20 20.20±0.40 7.50±0.25 12.40±0.40 11.2
EER25/21 1 25.50±0.40 21.40±0.30 7.50±0.20 20.20±0.40 7.50±0.15 15.20±0.30 12.3
EER26/16 1 25.50±0.50 16.00±0.40 7.50±0.20 19.80min 7.50±0.15 9.80±0.40 9.7
EER26/19 1 25.50±0.50 19.00±0.40 7.50±0.20 19.80min 7.50±0.15 12.80±0.40 11.0
EER28/10 2 28.50±0.50 9.70±0.30 11.40±0.25 21.20min 9.90±0.25 2.30±0.15 13.4
EER28/12 2 28.50±0.50 11.70±0.30 11.40±0.25 21.20min 9.90±0.25 4.30±0.20 15.0
EER28/17 2 28.50±0.50 17.00±0.40 11.40±0.25 21.20min 9.90±0.25 10.50±0.50 18.5
EER28/20 2 28.55+0.50-0.40 20.00±0.30 11.40±0.25 21.40min 9.90±0.25 12.80 +0.50-0.00 21.0
EER28/21 2 28.50±0.50 21.00±0.40 11.40±0.25 21.70±0.40 9.90±0.25 12.00±0.40 23.6
EER28/22 2 28.50±0.60 21.95±0.25 11.40±0.30 25.00min 9.90±0.30 13.25±0.25 23.7

TYPE Dimensions Unit/mm
Fig A 2B C D E 2F W(g/set)
EER28/28 2 28.50±0.60 28.00±0.50 11.40±0.30 21.20min 9.90±0.30 19.30±0.50 29.0
EER28/28N 2 28.50±0.60 28.00±0.50 11.40±0.30 21.80min 9.90±0.30 19.30±0.50 28.0
EER28/34 2 28.50±0.50 33.80±0.40 11.40±0.25 21.70±0.40 9.90±0.25 25.00±0.40 34.0
EER28/34N 2 28.50±0.60 33.80±0.50 11.40±0.30 21.80min 9.90±0.30 25.00±0.50 33.0
EER28/35 2 28.50±0.50 35.00±0.40 11.40±0.25 21.70±0.50 9.90±0.25 26.20±0.50 35.0
EER29/28 2 29.40±0.50 28.00±0.50 11.40±0.30 21.20min 9.90±0.30 19.30±0.30 29.0
EER29/34 2 29.40±0.50 34.00±0.50 11.40±0.30 21.20min 9.90±0.30 25.00±0.50 32.0
EER30/16 2 30.00±0.50 16.00±0.30 20.00±0.30 26.00±0.40 11.00±0.20 10.60±0.40 27.0
EER30/19 2 30.00±0.50 18.80±0.30 20.00±0.30 25.40±0.40 13.30±0.20 13.20±0.30 33.60
EER30/20 1 29.80±0.80 20.20±0.40 9.50±0.30 22.00min 9.50±0.30 12.20±0.40 19.50
EER30/22 1 29.80±0.80 21.80±0.40 9.50±0.30 22.00min 9.50±0.30 12.20±0.40 21.0
EER30/32 1 29.80±0.70 31.60±0.50 9.50±0.30 22.00min 9.50±0.30 22.00±0.50 28.0
EER33/35 2 33.00±0.50 34.60±0.50 13.80±0.25 25.00±0.50 12.50±0.25 25.60±0.50 48.5
EER34/26 1 34.20±0.80 26.00±0.40 10.80±0.30 25.60min 10.80±0.30 15.60±0.60 32.0
EER34/34 1 34.20±0.80 34.60±0.40 10.80±0.30 25.60min 10.80±0.30 24.20±0.60 39.0
EER34/35 1 34.20±0.80 35.80±0.40 10.80±0.30 25.60min 10.80±0.30 25.40±0.60 40.0

TYPE Dimensions Unit/mm
Fig A 2B C D E 2F W(g/set)
EER35/30 1 35.00±0.70 30.00±0.40 11.30±0.40 25.30min 11.30±0.30 20.00±0.40 39.0
EER35/34 1 35.30±0.50 33.60±0.40 11.30±0.30 26.40min 11.30±0.30 21.60±0.40 44.0
EER35/38 1 35.30±0.50 38.00±0.40 11.30±0.25 27.00±0.50 11.30±0.25 26.00±0.50 48.0
EER35/42 1 35.30±0.50 41.80±0.40 11.30±0.25 27.00±0.50 11.30±0.25 29.80±0.50 52.0
EER36/43 1 35.30±0.50 43.00±0.50 11.30±0.30 26.40min 11.30±0.30 31.00±0.50 53.0
EER36/43 1 36.00±0.60 43.00±0.50 11.30±0.30 27.00min 11.30±0.30 31.00±0.50 53.5
EER36/43D 1 36.80±0.60 43.00±0.50 11.30±0.30 28.30min 11.30±0.30 31.00±0.50 55.0
EER39/36 1 39.30±0.50 36.40±0.50 12.70±0.30 29.30min

12.70±0.30

26.00±0.50 54.0
EER39/40 1 39.30±0.50 40.40±0.50 12.70±0.30 29.30min 12.70±0.30 30.00±0.50 60.0
EER39/42 1 39.30±0.50 42.00±0.50 12.70±0.30 29.30min 12.70±0.30 31.60±0.50 61.0
EER39/43 1 39.30±0.50 42.40±0.50 12.70±0.30 29.30min 12.70±0.30 32.00±0.50 61.5
EER39/45 1 39.30±0.50 44.60±0.40 12.70±0.30 30.10±0.60 12.70±0.30 34.20±0.50 66.0
EER39/42 2 40.00+0.80-0.50 42.60±0.40 15.00±0.20 30.700min 14.00±0.25 30.60±0.40 79.0
EER40/45 1 40.00±0.80 44.80±0.50 13.30±0.30 29.00min 13.30±0.30 30.80±0.50 78.0
EER40/45A 2 40.00 +0.80-0.50 45.00±0.40 15.00±0.20 30.70min 14.00±0.25 33.00±0.40 82.0

Core Ser Parameters

Type C1(mm) Le(mm) Ae(mm) Ve(mm) AL±25%(nH/N)
Lp4 Lp44
EER09/05 1.68 14.2 8.47 120.27 1050 1100
EER12/05 0.91 15.2 16.75 254.60 1900 2000
EER23/24 1.41 56.4 39.9 2250.36 1500 1550
EER24/29 1.06 62.3 59.0 3675.7 2000 2100
EER25/19 1.20 52.9 44.1 2332.89 1750 1850
EER25/21 1.20 47.2 44.1 2332.89 1700 1750
EER26/16 0.95 42.3 44.5 1882.35 2200 2300
EER26/19 1.09 48.6 44.3 2139.69 1900 2000
EER28/10 0.34 28.0 83.4 2335.20 5600 5850
EER28/12 0.38 31.8 83.3 2648.94 5700 5950
EER28/17 0.55 43.4 78.9 3424.26 3400 3550
EER28/20 0.60 49.0 81.0 3969.00 3300 3450
EER28/21 0.54 48.0 88.2 4192.92 3150 4100
EER28/22 0.59 50.8 85.3 4332.24 4050 4200

Type C1(mm) Le(mm) Ae(mm) Ve(mm) AL±25%(nH/N)
Lp4 Lp44
EER28/28 0.73 63.0 86.0 5418.00 2850 3000
EER28/28N

0.76

63.4 83.6 5300.24 2800 2900
EER28/34 0.87 74.4 85.4 6319.60 2650 2750
EER28/34N 0.90 74.8 83.1 6215.88 2450 2550
EER28/35 0.89 76.1 85.5 6506.55 2300 2400
EER29/28 0.76 64.2 85.2 5770 2700 2750
EER28/34 0.88 75.5 85.2 6430 2400 2450
EER30/16 0.40 43.2 109.0 4708.80 5700 5950
EER30/19 0.34 47.2 137.0 6466.40 6100 6350
EER30/20 0.70 51.0 71.9 3666.90 3000 3150
EER30/22 0.66 51.2 78.0 3993.60 3050 3200
EER30/32

0.93

70.6 76.0 5365.60 2300 2400
EER33/35 0.62 77.8 125.0 9725.00 3250 3400
EER34/26 0.63 61.9 98.4 6090.96 2850 2950
EER34/34 0.81 78.6 97.5 7663.50 2900 3050
EER34/35 0.81 79.0 97.0 7663.00 2750 2850

Type C1(mm) Le(mm) Ae(mm) Ve(mm) AL±25%(nH/N)
Lp4 Lp44
EER35/30 0.66 70.3 107.0 7522.10 2850 2950
EER35/34 0.68 74.7 109.0 8202.06 3300 3450
EER35/38 0.77 83.5 108.4 9051.40 2950 3050
EER35/42 0.83 91.0 109.0 9919.00 2700 2800
EER35/43 0.85 93.0 109.0 10137.00 2600 2700
EER36/43 0.87 94.1 108.1 10172.21 2500 2600
EER36/43D 0.91 95.4 104.6 9985.74 2450 2550
EER39/36 0.68 84.6 125.0 10575.00 3500 3650
EER39/40 0.76 94.4 123.8 11686.72 3150 3250
EER39/42 0.80 98.4 123.4 12142.56 3000 3100
EER39/43 0.80 98.4 123.4 12142.56 3000 3100
EER39/45 0.84 102.8 123.0 12644.40 2900 3000
EER40/42 0.61 96.3 158.0 15215.40 3450 3600
EER40/45 0.65 97.4 151.0 14707.40 3600 3750
EER40/45A 0.64 101.0 151.0 15857.00 3250 3400
