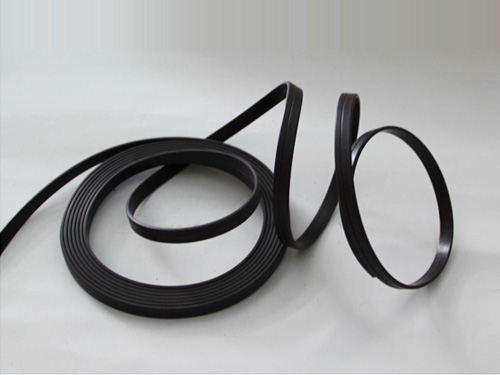

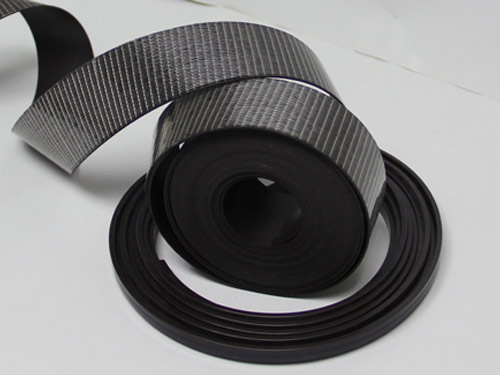

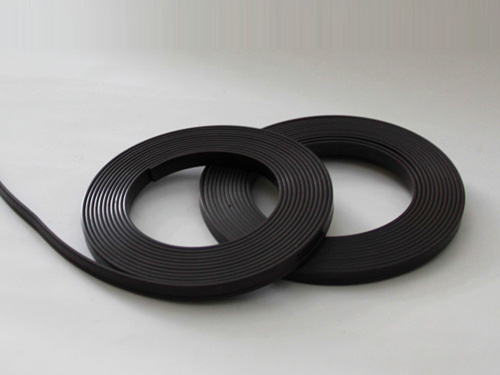

Flexible Magnetic Strip
Description:
- Material : Flexible & Rubber Magnet
- Shape of magnet : Strip
- Colour : Dark brown
- Laminate : No laminate
- Width : 30.0mm
- Thickness: 0.6mm
- Tolerance: +/-0.1mm，thickness +/-0.05mm
- Operating Temp(Max).: -20 ~ 80℃ （176℉）
- Density: 3.70g/cm3
- Magnetized Direction: Magnetized on the dark brown side.
- Application：Ideal for office & warehouse labelling, and other industrial applications
- Other size and color are available on request.
Magnetic Strip 30mm x 0.6mm x 15m
Grade of Flexible Magnet
Length : 15meter or 30meter per roll
Width : 5.0mm ~ 70mm
Thickness : 0.6mm ~ 3.0mm
Laminates of Magnetic Strip
Suface treatment of magnetic sheeting usually used are vinyl and self-adhesive tape
Plain (no laminate)
White matt ( gloss) vinyl
Coloured matt(gloss)vinyl
Inddor & outdoor adhesive
Foam backing
Other laminate available on request
Tolerance of Magnetic Strip
Standard tolerance : +/-0.1mm (±0.004” )
Thickness : +/- 0.05mm
Also stricter tolerance are possible if specially requested.
Packaging and Delivery
Packaging: Neutral box packaging, foam inside and other protection, to ensure
safely of transportation.
Delivery time: 8 ~ 20days, depend on customer’s order quantity.
How to order
1.Dimention of Magnet Strip?
2.Laminate of Magnetic Strip ?
Plain(no laminate), PVC or Adhesive
3.Quantity what you need ?
Piece or Roll
4.Colors of magnetic Strip?
Green, Blue, Yellow, Red, Pink, White and Brown.
5.What’s the product used for ? Indoor or outdoor ?
Grade of Flexible Magnet
| Magnetic Properties of Flexible Magnet | ||||||||
| Grade | Remanence (Br) | Coercivity (bHc) | Intrinsic Coercivity (jHc) | Max Energy (BH max) | ||||
| mT | Gs | KA/m | Oe | KA/m | Oe | KJ/m3 | MGOe | |
| Flexible 01 | 140-155 | 1400-1550 | 90-120 | 1125-1500 | 130 | 1625 | 4.0-5.6 | 0.5-0.7 |
| Flexible 02 | 160-185 | 1600-1850 | 120-140 | 1500-1750 | 150 | 1875 | 5.6-7.0 | 0.7-0.89 |
| Flexible 03 | 200-210 | 2000-2100 | 145 | 1812 | 160 | 2000 | 8.0-9.6 | 1.0-1.2 |
| Flexible 04 | 230-245 | 2300-2450 | 160 | 2000 | 175 | 2188 | 10.0 - 11.0 | 1.25-1.39 |
| Flexible 05 | 250 - 260 | 2500-2600 | 160 | 2000 | 182 | 2275 | 11.2 - 12.8 | 1.40-1.51 |
Length : 15meter or 30meter per roll
Width : 5.0mm ~ 70mm
Thickness : 0.6mm ~ 3.0mm
Laminates of Magnetic Strip
Suface treatment of magnetic sheeting usually used are vinyl and self-adhesive tape
Plain (no laminate)
White matt ( gloss) vinyl
Coloured matt(gloss)vinyl
Inddor & outdoor adhesive
Foam backing
Other laminate available on request
Tolerance of Magnetic Strip
Standard tolerance : +/-0.1mm (±0.004” )
Thickness : +/- 0.05mm
Also stricter tolerance are possible if specially requested.
Packaging and Delivery
Packaging: Neutral box packaging, foam inside and other protection, to ensure
safely of transportation.
Delivery time: 8 ~ 20days, depend on customer’s order quantity.
How to order
1.Dimention of Magnet Strip?
2.Laminate of Magnetic Strip ?
Plain(no laminate), PVC or Adhesive
3.Quantity what you need ?
Piece or Roll
4.Colors of magnetic Strip?
Green, Blue, Yellow, Red, Pink, White and Brown.
5.What’s the product used for ? Indoor or outdoor ?
