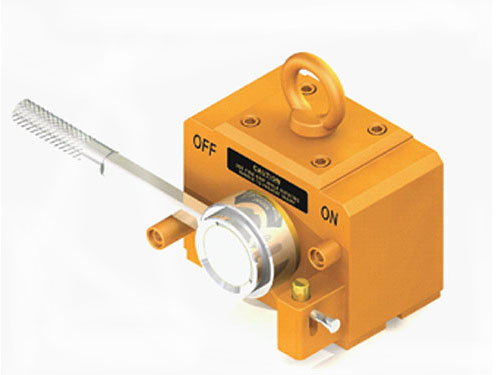

Permanent magnetic lifter

Permanent magnetic lifter
Description:
  • Permanent Magnet Lifter for hoisting
  • Magnetic Material: Rare earth Magnet
  • Rated Lifting Capacity(kgs): 300~3000
  • Max lifting capacity(kgs): 900~9000
  • Dimension Length (mm): 160~360
  • Weight (kgs): 14~130

Permanent Magnetic Lifter has strong magnetic path produced by NdFeB magnet. On and off of the magnetic path is controlled by turning the manual handle.The lifters have the features of strong attraction,smaller volume,lighter weight,powerful lifting effort, easy and safe to operate,long-period effort and without power supply.
Use to lift and transport steel and iron for factories, docks, warehouses, transportation and more.
Turning the manual handle activates or turns off the magnet.
Strong attraction gives this tool a powerful lifting ability while it’s small size and light weight makes it easy and safe to operate. Effective for long periods with no need for a power supply.

Permanent Lifting magnet

PartNo. Rated lifting capacity Max liftingc apacity Dimension(mm) Weight
kgs kgs Length width     Height (kgs)
F3003 300 900 160 90 120 14
F6003 600 1800 180 160 120 27
F10003 1000 3000 250 120 185 45
F20003 2000 6000 250 240 185 90
F30003 3000 9000 360 250 185 130
