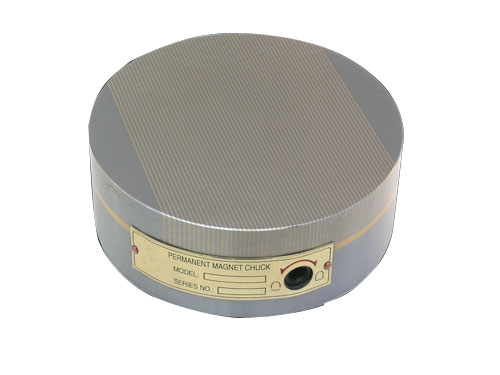

Round magnetic chucks

Description:
  • Used to hold workpiece on lathes and internal for grinding, milling, lapping and cutting process.
  • Powerful Permanent Magnets
  • High precision, powerful clamping force
  • Water&corrosion proof
  • Fast delivery,custom
  • Good price

Holding device for Rotary surface grinding and also for Lathe and Cylindrical grinding machines.
Assembled with powerful Magnets.
Magnetic chuck are widely used in many fields, such as motors, sensors, microphones, wind turbines, wind generators, VCMs in hard disk drives, printer, switchboard, loudspeakers, magnetic separation, magnetic hooks, magnetic holder, magnetic chuck, common daily use, and so on.

Normal circle magnetic chuck

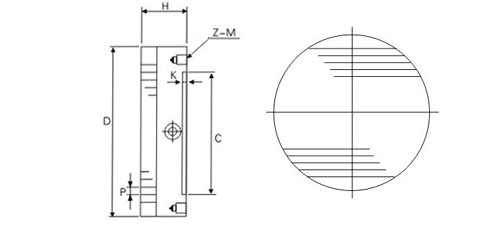

Model No. D H K C Z M P Weight(kg)
RX125M6 125 48 3 80 4 M6 2 4.6
RX150M6 150 48 3 100 4 M6   6.6
RX160M8 160 48 3 100 4 M8 0.5+1.5 8.9
RX200M8 200 52 4 120 4 M8   12.8
RX250M8 250 52 4 160 4 M8 or 20
RX300M8 300 58 4 220 4 M8   32
RX400M10 400 58 4 300 4 M10 4 57
RX500M12 500 65 5 408 4 M12   100
RX600M12 600 65 5 528 4 M12 1+3 144
