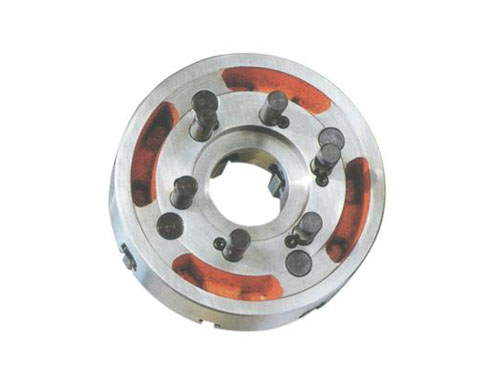

4 jaw independent chuck

4 jaw independent chuck
Description:
  • Used to hold workpiece on lathes and internal for grinding, milling, lapping and cutting process.
  • Powerful Permanent Magnets
  • High precision, powerful clamping force

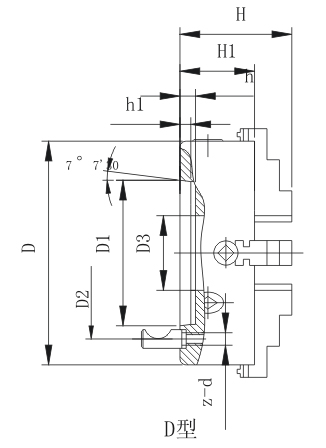

Direct mounting 4 jaw independent chuck


Diameter D1 D2 D3 H H1 h h1 h2 d1 z-d
RX160-4J/2 63.513 82.6 45 93 65 12 10 6.5 14.7 4-M10
RX200-4J/2 63.513 82.6 56 107 75 13 10 6.5 14.7 4-M10
RX250-4J/2 63.513 82.6 61 120 80 - 10 6.5 14.7 4-M10
RX250-4J/2 136.375 133.4 75 120 80 16 13 6.5 19.5 4-M12
RX315-4J/2 63.513 82.6 61 138 90 - 10 6.5 14.7 4-M10
RX315-4J/2 106.375 133.4 95 138 90 16 13 6.5 19.5 4-M12
