Steel body scroll chucks
Description:
- Used to hold workpiece on lathes and internal for grinding, milling, lapping and cutting process.
- Powerful Permanent Magnets
- High precision, powerful clamping force

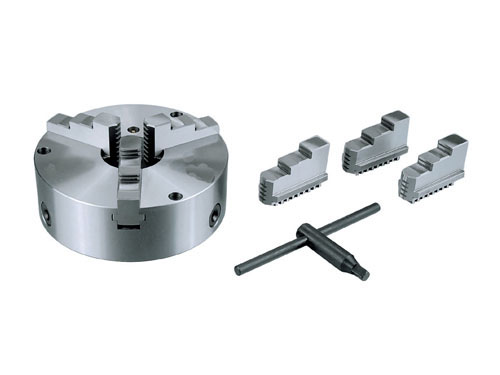

Steel Body Scroll Chucks,it's suitable for Lathe and grinding machine.
1.Chuck body is made of steel to enhance safety operations for high speed machining.
2.The chuck handle can be operated easily and smoothly.
3.Inside and outside jaws adopt the design of hydraulic master jaws.The structure is stronger than SC series.
4.Adjustable design guarantees the gripped test-bar runout at 0.01mm.
Steel body scroll chucks

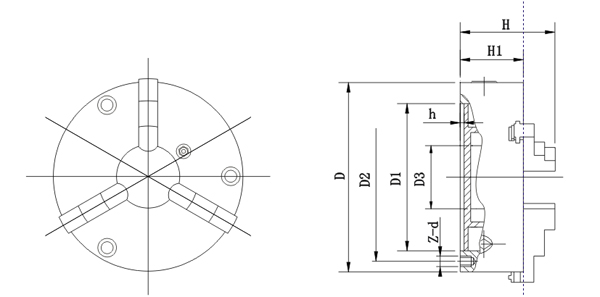

| Diameter | D1 | D2 | D3 | H1 | h | z-d | H | Max.Speed | Gripping forse | Max.Gripping Dia. | ||
| (r.p.m) | KN | O.D.Clamping | I.D.Clamping | |||||||||
| RX160-3J/2 | 130 | 142 | 45 | 67 | 5 | 3-M8 | 97 | 3820 | 24 | Φ3-Φ145 | Φ50-Φ160 | |
| RX200-3J/2 | 165 | 180 | 65 | 77 | 5 | 3-M10 | 111 | 3056 | 31 | Φ4-Φ200 | Φ65-Φ200 | |
| RX250-3J/2 | 206 | 226 | 80 | 82 | 5 | 3-M12 | 122 | 2447 | 37 | Φ6-Φ250 | Φ80-Φ250 | |
| RX315-3J/2 | 260 | 285 | 100 | 92 | 6 | 3-M16 | 155 | 1940 | 46 | Φ10-Φ315 | Φ95-Φ315 | |
