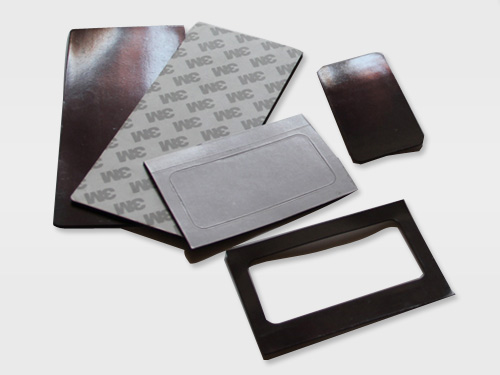

Flexible Magnetic Label

Flexible Magnetic Label
Description:
  • Material : Flexible & Rubber Magnet
  • Shape of magnet : Sheet
  • Colour : White
  • Dimension: 150mm x 100mm; 100mm x 50mm; 100mm x 30mm
  • 70mm x 50mm; 70mm x 40mm ; 50mm x 20mm
  • Other size and color may be available on request.
  • Thickness: 0.8mm
  • Tolerance: +/-0.05mm
  • Laminate : Coloured Vinyl or Self-adhesive
  • Density: 3.70g/cm3
  • Operating Temp(Max).: -20 ~ 80℃ （176℉）
  • Magnetized Direction: Magnetized on the dark brown side.
  • Application：Suitable for advertising , Warehouse label, Vehicle signage and office
  • Other size and color are available on request.

Magnetic Label &Tag   70mm x 50mm x 0.8mm

Grade of Flexible Magnet

Magnetic Properties of Flexible Magnet
Grade   Remanence  (Br) Coercivity  (bHc) Intrinsic Coercivity (jHc) Max Energy  (BH max)
 mT Gs  KA/m Oe  KA/m Oe KJ/m3  MGOe
Flexible 01 140-155 1400-1550 90-120 1125-1500 130 1625 4.0-5.6 0.5-0.7
Flexible 02 160-185 1600-1850 120-140 1500-1750 150 1875 5.6-7.0 0.7-0.89
Flexible 03 200-210 2000-2100 145 1812 160 2000 8.0-9.6 1.0-1.2
Flexible 04 230-245 2300-2450 160 2000 175 2188 10.0 - 11.0 1.25-1.39
Flexible 05 250 - 260 2500-2600 160 2000 182 2275 11.2 - 12.8 1.40-1.51

Dimension Range of Magnetic Sheet
Length :   20mm ~ 700mm
Width  :  10mm ~ 200mm
Thickness :  0.8mm ~ 2.0mm

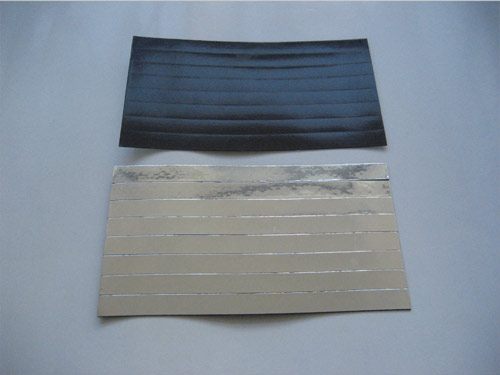

Laminates of Magnetic Sheet
Suface treatment of magnetic sheeting usually used are vinyl and self-adhesive tape
Plain (no laminate, dark brown both sides)
White matt ( gloss) vinyl
Coloured matt(gloss)vinyl

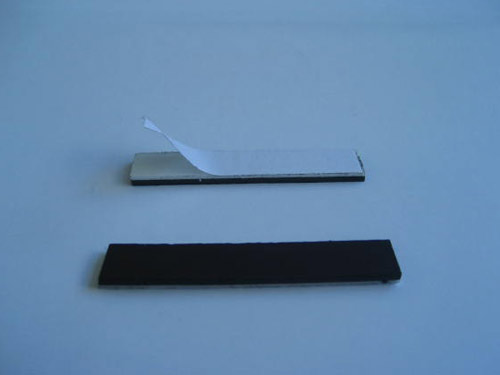

Inddor & outdoor adhesive
Foam backing
Other laminate available on request

Tolerance of Magnetic Sheet
Standard tolerance : +/-0.1mm  (±0.004” )
Thickness: +/-0.05mm
Also stricter tolerance are possible if specially requested.

Packaging and Delivery
Packaging:  Neutral box packaging, foam inside and other protection, to ensure
safely of transportation.
Delivery time: 8 ~ 20days, depend on customer’s order quantity.



How to order
1.Dimention of Magnet sheet ?
2.Laminate of Magnetic sheet ?
Plain(no laminate), Coloured PVC or Adhesive
3.Quantity what you need ?
Piece or Roll
4.Colors of magnetic sheet ?
Green, Blue, Yellow, Red, Pink, White and Brown.
5.What’s the product used for ?  Indoor or outdoor ?
Please call or email us for more information.
