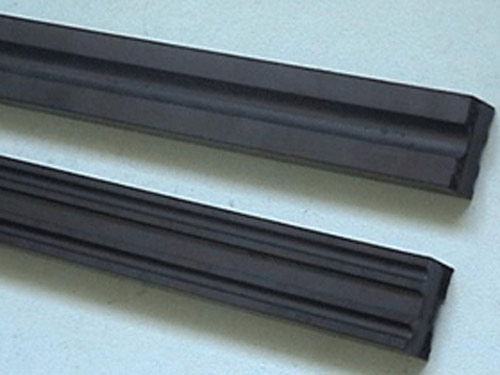

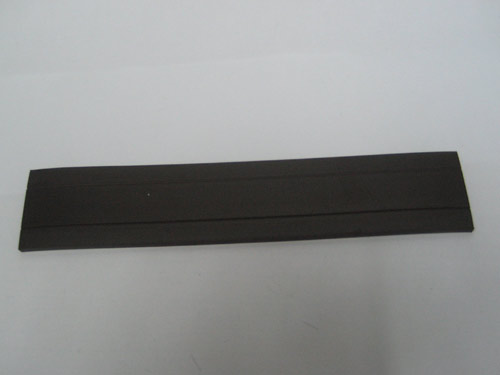

Magnetic Door Sealing Strip

Description:
  • Material : Flexible & Rubber Magnet
  • Shape of magnet : Strip
  • Colour : Dark brown
  • Laminate : No laminate
  • Dimension: 3x9mm; 2x8.2mm; 2.5x9mm; 2.6x8mm,
  • 2x9mm 2x12mm; 2x12.5mm ; 2.5x12mm
  • Tolerance: +/-0.1mm
  • Density: 3.70g/cm3
  • Operating Temp(Max).: -20 ~ 80℃ (176℉)
  • Magnetized Direction: Magnetized on the dark brown side.
  • Application:Magnetic door sealing are widely used in refrigerator, Freezer, Disinfecting
  • cabinet, and household applicances.
  • Other dimension are available on request.

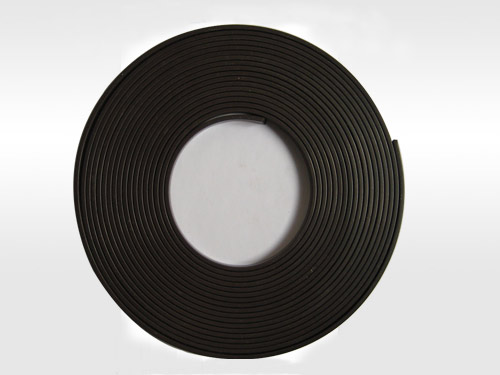

Magnetic Strip For Door Sealing  3mm x 9mm x 20m

Grade of Flexible Magnet
Magnetic Properties of Flexible Magnet
Grade   Remanence  (Br) Coercivity  (bHc) Intrinsic Coercivity  (jHc) Max Energy (BH max)
 mT Gs  KA/m Oe  KA/m Oe KJ/m3  MGOe
Flexible 01 140-155 1400-1550 90-120 1125-1500 130 1625 4.0-5.6 0.5-0.7
Flexible 02 160-185 1600-1850 120-140 1500-1750 150 1875 5.6-7.0 0.7-0.89
Flexible 03 200-210 2000-2100 145 1812 160 2000 8.0-9.6 1.0-1.2
Flexible 04 230-245 2300-2450 160 2000 175 2188 10.0 - 11.0 1.25-1.39
Flexible 05 250 - 260 2500-2600 160 2000 182 2275 11.2 - 12.8 1.40-1.51

Dimension Range of Magnetic Strip
3x9mm;   2x8.2mm;    2.5x9mm;    2.6x8mm,
2x9mm ;   2x12mm;    2x12.5mm ;  2.5x12mm
Other dimension may be available on request.

Laminates of Magnetic Strip

Suface treatment of magnetic sheeting usually used are vinyl and self-adhesive tape
Plain (no laminate)
White matt ( gloss) vinyl
Coloured matt(gloss)vinyl
Inddor & outdoor adhesive
Foam backing
Other laminate available on request

Tolerance of Magnetic Strip
Standard tolerance : +/-0.1mm  (±0.004” )
Also stricter tolerance are possible if specially requested.

Packaging and Delivery
Packaging:  Neutral box packaging, foam inside and other protection, to ensure
safely of transportation.
Delivery time: 8 ~ 20days, depend on customer’s order quantity.



How to order
1.Dimention of Magnet Strip?
2.Laminate of Magnetic Strip ?
3.Quantity what you need ?
4.Colors of magnetic Strip?
Green, Blue, Yellow, Red, Pink, White and Brown.
5.What’s the product used for ?  Indoor or outdoor ?
