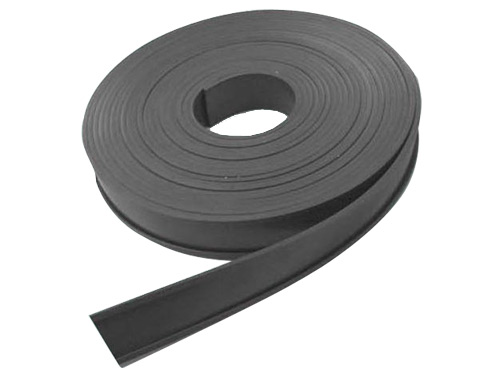

Magnetic label holder

Magnetic label holder
Description:
  • Material : Flexible & Rubber Magnet
  • Shape of magnet : Strip
  • Colour : Dark brown
  • Dimension: Width 15mm, 20mm; 25mm 30mm; 40mm; 50mm
  • Thick 1.0mm; 1.2mm; 1.3mm; 1.5mm
  • Length: 20meter/roll, 30meter/roll; 50meter/roll
  • Other size and color may be available on request.
  • Tolerance: +/-0.05mm
  • Laminate : No coating
  • Density: 3.70g/cm3
  • Operating Temp(Max).: -20 ~ 80℃ （176℉）
  • Density: 3.70g/cm3
  • Magnetized Direction: Magnetized on the Flat side.
  • Application：Ideal for warehouse, store room, equipment, instrument and all industry application, planning boards, display and exhibition.
  • used on the metal racks and metal shelves,metal cabinets, door, and frames.
  • You can easily removed and relocated many times.
Magnetic Card Holder   15mm x 1.0mm x 20meter

Grade of Flexible Magnet
Magnetic Properties of Flexible Magnet
Grade   Remanence   (Br) Coercivity  (bHc) Intrinsic Coercivity  (jHc) Max Energy (BH max)
 mT Gs  KA/m Oe  KA/m Oe KJ/m3  MGOe
Flexible 01 140-155 1400-1550 90-120 1125-1500 130 1625 4.0-5.6 0.5-0.7
Flexible 02 160-185 1600-1850 120-140 1500-1750 150 1875 5.6-7.0 0.7-0.89
Flexible 03 200-210 2000-2100 145 1812 160 2000 8.0-9.6 1.0-1.2
Flexible 04 230-245 2300-2450 160 2000 175 2188 10.0 - 11.0 1.25-1.39
Flexible 05 250 - 260 2500-2600 160 2000 182 2275 11.2 - 12.8 1.40-1.51

Dimension of Magnetic Lable holder
Length :  10m ~ 100meter
Width :   15mm ~ 50mm
Thick  :  1.0mm ~ 2.0mm

Benefit of Magnetic Label holder

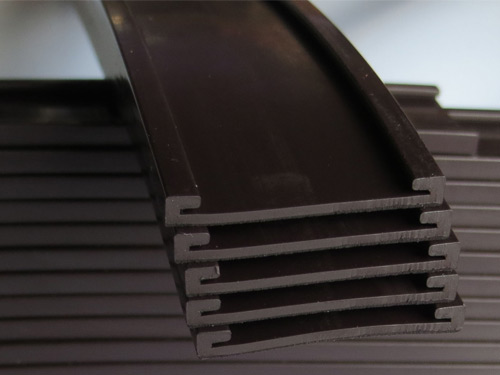

Magnetic card holder (C channel magnets)

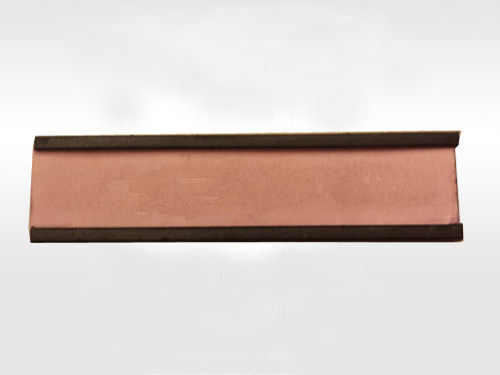

White or colorful cards can be inserted into magnetic label holder
Label holder magnet could be used repeatedly, save more cost and time.
Products number, data can be display on metal shelves.
Barcode display on warehouse frames.

Tolerance of Magnetic label holder
Standard tolerance : +/-0.05mm
Also stricter tolerance are possible if specially requested.

Packaging and Delivery
Packaging:  Neutral box packaging, foam inside and other protection, to ensure
safely of transportation.
Delivery time: 8 ~ 20days, depend on customer’s order quantity.



How to order
1.Dimention of Magnet sheet ?
2.Laminate of Magnetic sheet ?
Plain(no laminate), Coloured PVC or Adhesive
3.Quantity what you need ?
Piece or Roll
4.Colors of magnetic sheet ?
Green, Blue, Yellow, Red, Pink, White and Brown.
5. What’s the product used for ?  Indoor or outdoor ?
Please call or email us for more information.
